FITTING & VALVES

• Equipment Type
• Change Over Panel

• Accuracy
• High reliability and precision switching

• Application
• Automatic or manual changeover between two electrical power sources

• Automation Grade
• Automatic or Manual as ordered

• Capacity
• 10A to 800A or as per project specification

• Control Mode
• Manual/Automatic

• Display Type
• LED indicator for source status

• Features
• Auto/Manual changeover, phase selection, overload protection, short-circuit protection, source status indication

• Frequency
• 50/60 Hz

• Interface Type
• Terminals and optional communication (SCADA/BMS compatible models)

• Machine Weight
• Approx. 25-60 kg (varies with design)

• Max Height
• Varies by rating and configuration

• Mounting Type
• Wall or Floor Mounted

• Operating Voltage
• 230V/415V AC

• Port Size
• Customized as per site requirement

• Power Supply
• 415V AC, 3 Phase, 50 Hz

• Response Time
• Instantaneous switch (automatic models)

• Temperature
• -10C to 55C

• Usage
• Industrial, Commercial, Residential power backup systems

• Equipment Type

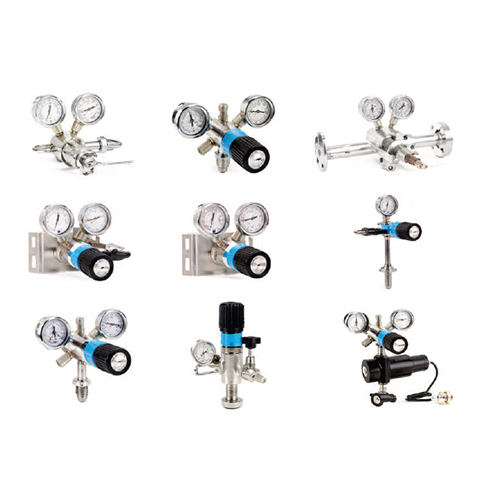

• Gas Regulator

• Accuracy
• 3%

• Application
• LPG/PNG/Industrial and Domestic Gas Control

• Automation Grade
• Manual

• Capacity
• Up to 20 m3/hr

• Control Mode
• Manual

• Display Type
• No Display (Mechanical)

• Features
• Corrosion Resistant, High Flow Rate, Adjustable Pressure Setting

• Gas Pressure
• 0-6 bar (Adjustable)

• Humidity
• 5% to 85% RH

• Interface Type
• Threaded

• Machine Weight
• 1.2 kg

• Max Height
• 11 cm

• Measuring Range
• 0-6 bar

• Mounting Type
• Pipe Mounted

• Port Size
• 1/2 inch BSP (Standard)

• Power Supply
• No External Power Required

• Resolution
• 0.1 bar

• Response Time
• <1 second

• Temperature
• -10C to 60C

• Usage
• Regulating Gas Pressure

• Equipment Type

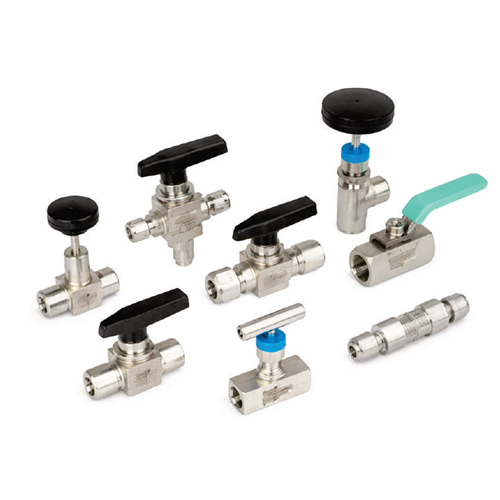

• Valve & Micron Filter

• Accuracy
• Micron rating 5%

• Application
• Air/Gas filtration, water filtration, industrial automation

• Automation Grade
• Manual

• Capacity
• Maximum flow 30 LPM (varies by model)

• Control Mode
• Manual

• Features
• Corrosion resistance, compact design, easy to install and replace, transparent filter bowl

• Gas Pressure
• Up to 10 bar

• Humidity
• Suitable for standard environmental humidity

• Interface Type
• Threaded/NPT/BSP

• Machine Weight
• Approx. 2-4 kg

• Max Height
• Up to 150 mm depending on model

• Measuring Range
• 5-150 micron filtration

• Mounting Type
• Inline/Panel Mount

• Number of Specimens
• Single filtration unit

• Operating Voltage
• Not applicable (mechanical/inline filtration)

• Port Size
• 1/4 inch to 1 inch

• Response Time
• Instant filtration

• Specimen Size
• Based on port diameter

• Temperature
• Operating range 0C to 60C

• Test Range
• 5 micron to 150 micron

• Usage
• Industrial filtration, pneumatic systems, compressors

• Equipment Type
• Flexible Metallic Hose

• Accuracy
• 1%

• Application
• Hydraulic, Pneumatic, Water, Steam, Chemical Transfer

• Automation Grade
• Manual/Automatic

• Capacity
• Up to 250 bar burst pressure

• Control Mode
• Manual or Automatic

• Display Type
• Analog/Digital

• Features
• Corrosion Resistant, High Flexibility, Leak Proof

• Gas Pressure
• Max 15 bar

• Hardness
• 60-75 Shore A

• Humidity
• 0 ~ 95% RH (non-condensing)

• Interface Type
• Threaded/Braided

• Machine Weight
• 2.3 kg/m

• Max Height
• Unlimited (depends on installation)

• Measuring Range
• Varies as per application

• Mounting Type
• Inline, Wall, or Floor

• Number of Specimens
• Single or Multiple

• Operating Voltage
• 220-240 V

• Port Size
• 1/4 inch to 2 inch

• Power Supply
• 230 V AC, 50 Hz

• Resolution
• 0.01 mm

• Response Time
• <1 sec

• Specimen Size
• Customizable

• Temperature
• -20C to +80C

• Test Range
• Low to Medium Pressure

• Test Speed
• Upto 40 m/s

• Test Stroke
• 300 mm maximum

• Test Width
• 12 mm to 75 mm

• Usage
• Fluid Transmission

• Equipment Type

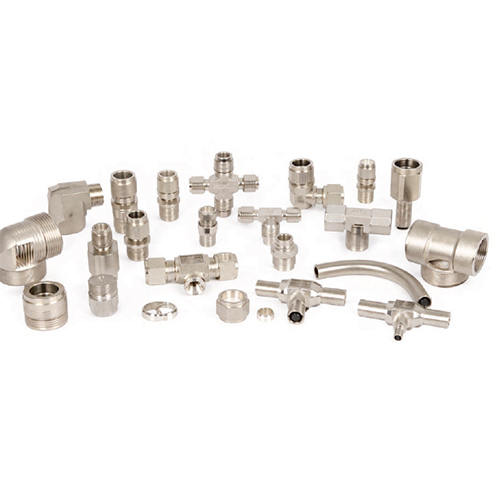

• Tube & Pipe Fitting

• Accuracy
• Precision-machined connections for secure fit

• Application
• Connects tubes and pipes for fluid/gas transport, HVAC, plumbing, industrial, hydraulic

• Automation Grade
• Manual

• Capacity
• Up to 250 bar (depending on material and design)

• Control Mode
• Manual or Threaded

• Features
• Leak-proof, corrosion-resistant, high pressure resistance, easy installation

• Gas Pressure
• Up to 25 bar

• Hardness
• As per material (Brass, SS, Copper, etc.)

• Humidity
• 5% - 95% RH (Non-condensing)

• Interface Type
• Threaded, compression, flanged, push-fit

• Machine Weight
• Varies by size and type (Typically 100g - 5kg)

• Max Height
• Depends on fitting type up to 350 mm

• Mounting Type
• Inline, panel, wall-mounted available

• Port Size
• 1/8 inch to 4 inches (custom sizes available)

• Response Time
• Immediate mechanical connection

• Specimen Size
• Standard & customized

• Temperature
• -20C to 120C (Material dependent)

• Usage
• Pipe & tube connection and joint

• Equipment Type
• Clamp Support Tagging Apparatus

• Accuracy
• Depends on manual operation

• Application
• Tagging and supporting clamps for identification or testing

• Automation Grade
• Manual

• Capacity
• Single Tag/Clamp Operation

• Control Mode
• Manual

• Features
• Portable, Light Weight, Easy Handling

• Hardness
• Tool Steel, 45 HRC

• Humidity
• Up to 85% RH

• Machine Weight
• Approx. 5 kg

• Max Height
• 150 mm (including handle)

• Mounting Type
• Bench/Handheld

• Number of Specimens
• 1 at a time

• Power Supply
• Not Required (Manual Tool)

• Response Time
• Instantaneous (manual)

• Specimen Size
• Suitable for standard tagging material

• Temperature
• 10C to 60C

• Test Range
• Varies as per tag size

• Test Speed
• Standard

• Test Stroke
• 50 mm

• Test Width
• Up to 100 mm

• Usage
• Industrial, Laboratory, Cable Management, Pipe Tagging
